Corner Units

All flat pack units are Australian made and are available for pick up or delivery from any of our locations.

Description

Corner units, as the name describes, are the perfect solution for cupboard space in the corners of your kitchens or laundries.

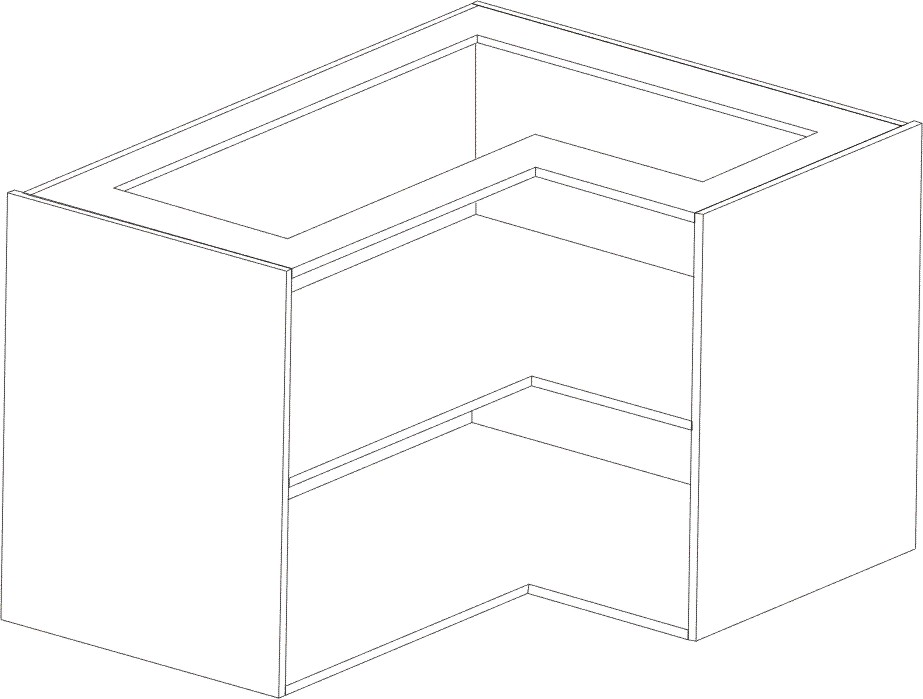

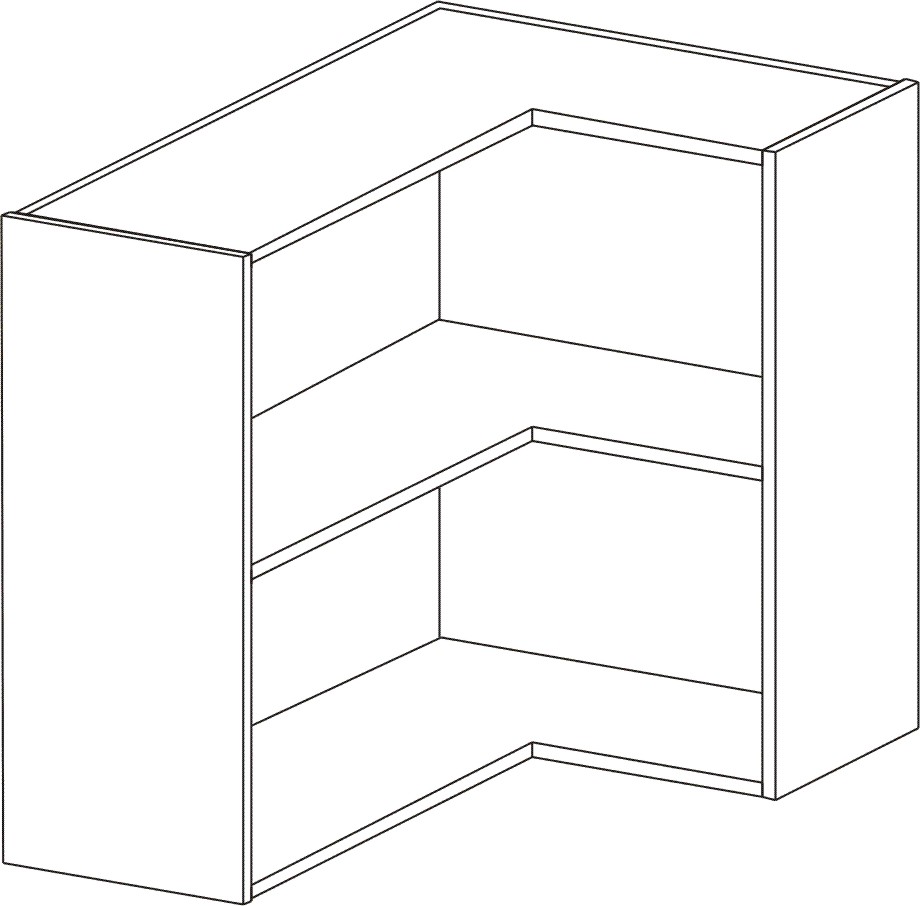

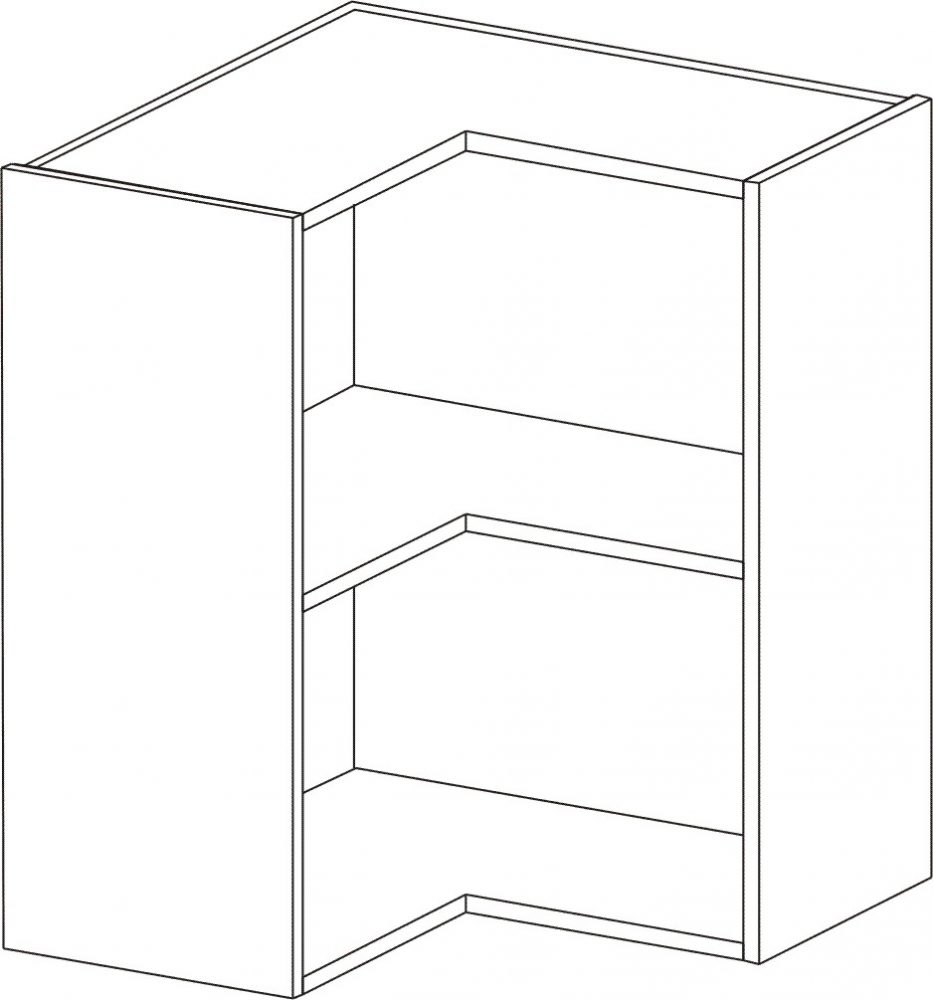

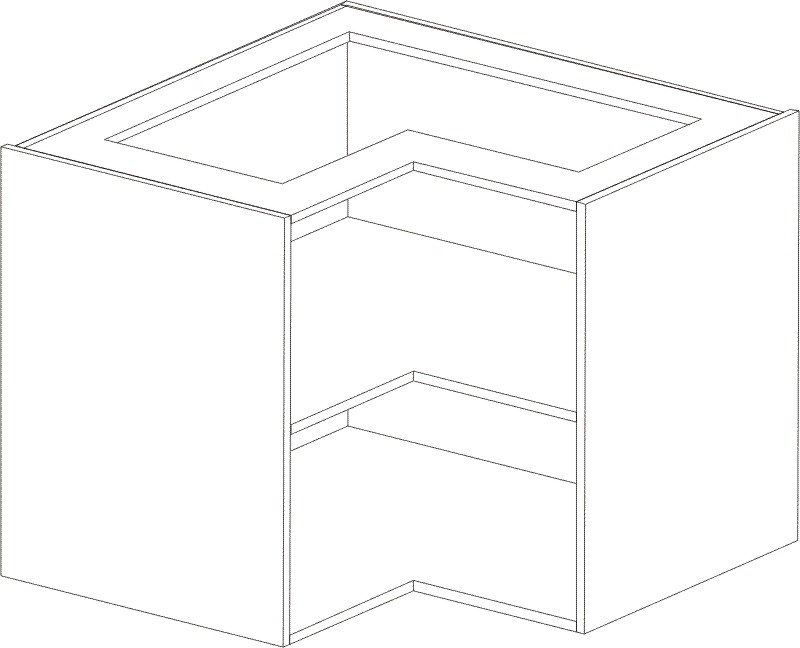

These units are available in a base style and an over head style cabinet.

Features

** Disclaimers on this product **

  • Please put the middle shelf in before fitting back panels
  • The 900 x 800 and 900 x 1200 can be flipped to be installed as either a left or right so therefore there is NO drilling in the base for adjustable feet. As the 900 x 900 unit is symmetrical, the base is drilled for easy to install knock in, adjustable feet.
Sizing
Type Size Door sizes Drilling
Corner base 900 x 800 720 x 900 x 800 x 561 1 @ 717 x 316

1 @ 717 x 216

87/87 Bifold

NIL

Corner base 900x x900 720 x 900 x 900 x 561 1 @ 717 x 316

1 @ 717 x 316

87/87 Bifold

NIL

Corner base 1200 x 900 720 x 900 x 1200 x 561 1 @ 717 x 316

1 @ 717 x 307

1 @ 717 x 307

87/87 Bifold

87/87

NIL

Corner wall 600 x 600 720 x 600 x 600 x 299 1 @ 720 X 276

1 @ 720 x 276

87/87 Bifold

NIL

Corner wall 900 x 600 720 x 600 x 900 x 299 1 @ 720 x 297

1 @ 720 x 276

1 @ 720 x 276

87/87

NIL

87/87 Bifold

Important Information
  • For your convenience we can drill hinge holes for your doors. You will need to specify if you would prefer screw on hinges (we drill a single 35mm hole) or clip-on hinges (we drill a 35mm hole plus 2 smaller holes.
  • Grass pattern only.
  • Put the middle shelf in before fitting back panels.
  • The 900 x 800 and 900 x 1200 can be flipped to be installed as either a left or right so therefore there is NO drilling in the base for adjustable feet. As the 900 x 900 unit is symmetrical the base is drilled for easy to install knock in, adjustable feet.
