Pantry Units

All flat pack units are Australian made and are available for pick up or delivery from any of our locations.

Description

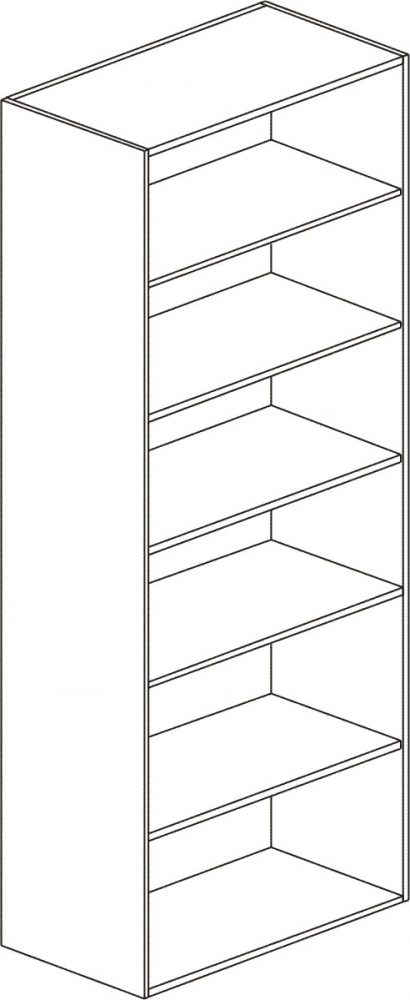

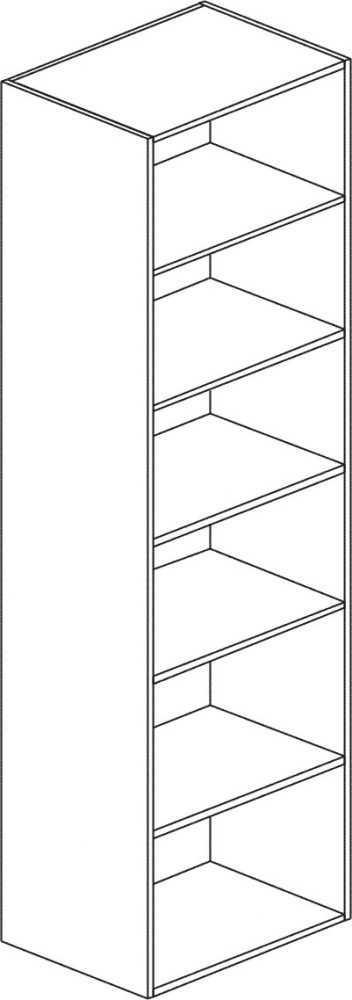

Pantry units are designed to sit 150mm off the floor the same as Base units.

Pantry units are designed at 2080mm in height and are made to a depth of 583mm which accommodates a 600mm wide bench top perfectly.

Our pantry units come in varying widths and can accommodate 1 or 2 door preferences.

They have five adjustable shelves with shelf hole drilling (system 32) so that shelves can be adjusted to required height

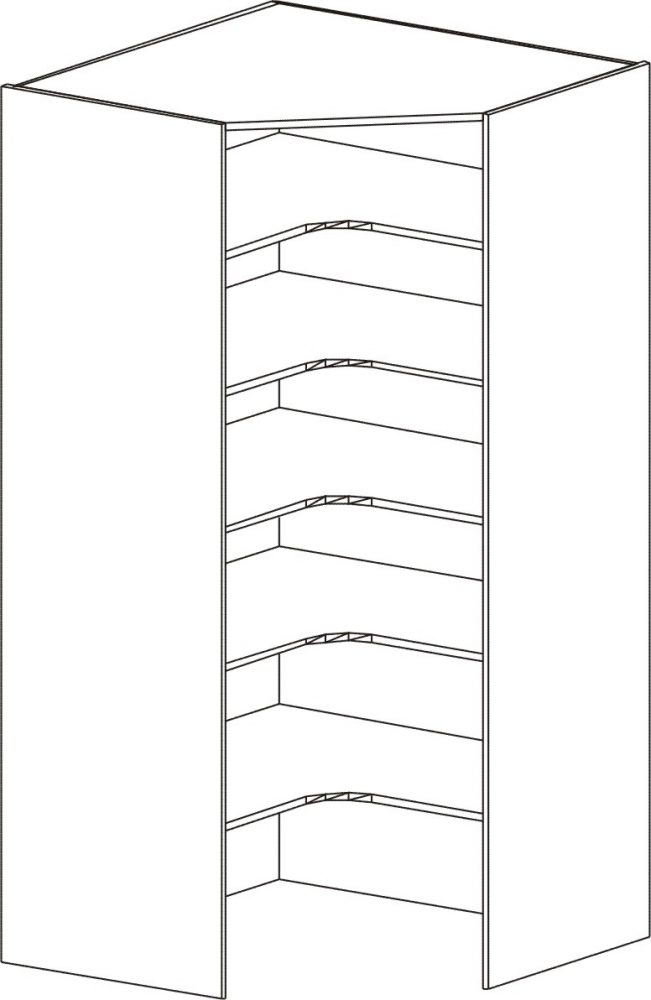

Corner Pantry Units are designed to sit on the floor being 2230 high

Broom cupboards are similar to our pantry units and are designed to sit 150mm off the floor with one fixed shelf.

Features
  • Easy installation
  • Customised door options
  • Five adjustable shelves
Sizing
Type Size 1 Door 2 Door Drilling
Pantry 400 2080 x 400 x 583 1 x 2080 x 397 87/671/671/87
Pantry 450 2080 x 450 x 583 1 x 2080 x 447 87/671/671/87
Pantry 500 2080 x 500 x 583 1 x 2080 x 497 87/671/671/87
Pantry 600 2080 x 600 x 583 1 x 2080 x 597 2 x 2080 x 297 87/671/671/87
Pantry 700 2080 x 700 x 583 2 x 2080 x 347 87/671/671/87
Pantry 800 2080 x 800 x 583 2 x 2080 x 397 87/671/671/87
Pantry 900 2080 x 900 x 583 2 x 2080 x 447 87/671/671/87
Pantry 1000 2080 x 1000 x 583 2 x 2080 x 497 87/671/671/87
Corner Pantry 1000 2230 x 1000 x 1000 x 589 1 x 2210 x 563 87/671/671/87
Broom 400 2080 x 400 x 583 1 x 2080 x 397 87/671/671/87
Broom 600 2080 x 600 x 583 1 x 2080 x 597 87/671/671/87



Important Information
  • Doors not included in units
  • For your convenience we can drill hinge holes for your doors. You will need to specify if you would prefer screw on hinges (we drill a single 35mm hole) or clip-on hinges (we drill a 35mm hole plus 2 smaller holes, grass pattern only).
  • Corner Pantry units must be installed level and square to ensure the door will fit correctly. The door size supplied on our list is based on an 18mm thick door using grass 45° 3mm cranked hinge.
  • Broom cupboards are supplied with one adjustable shelf.
