Drawer Units

All flat pack units are Australian made and are available for pick up or delivery from any of our locations.

Description

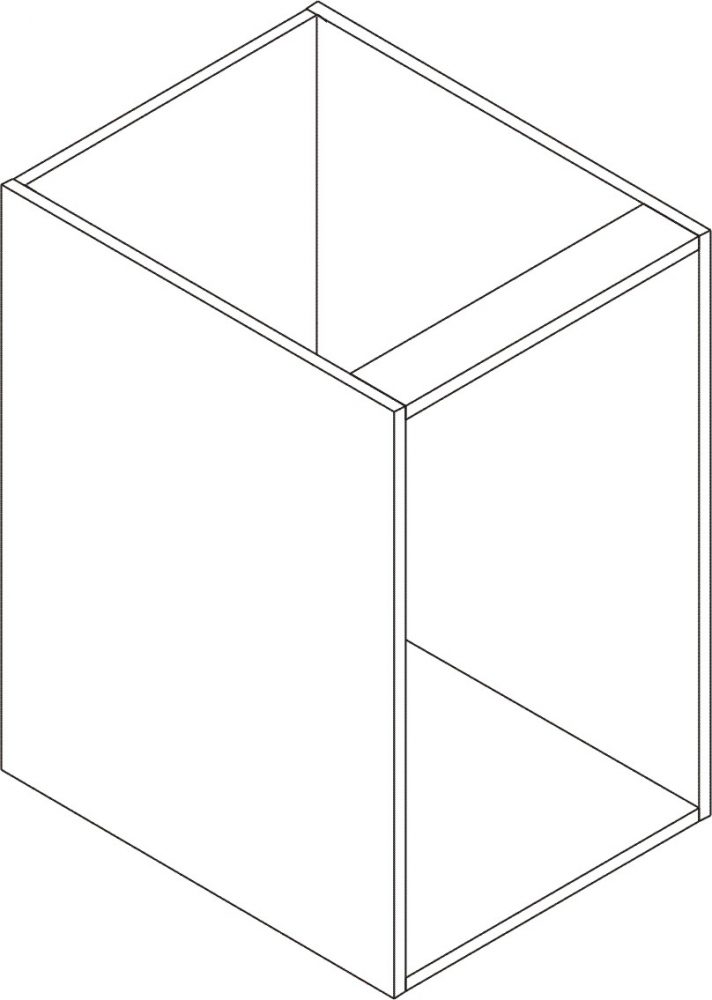

Drawer units are made to the same dimensions as our base units so that they can sit side by side.

The obvious difference with Drawer units compared to Base units is that instead of putting doors on the front you are fitting Drawer sets in side.

Our Drawer units are designed to fit either 4 equal sized drawers or 3 drawers of unequal size (1 top drawer small and 2 larger bottom drawers)

They are pre drilled to accommodate either standard or softclose drawer sets – Drawer unit costs do not include drawer sets, they are a separate product.

Features
  • Easy to install
  • Customized drawer front options
Sizing
Type Size 4 Drawer front 3 Drawer front
Drawer 400 720 x 400 x 561 4 @ 177 x 397
Drawer 450 720 x 450 x 561 4 @ 177 x 447
Drawer 500 720 x 500 x 561 4 @ 177 x 497
Drawer 600 720 x 600 x 561 4 @ 177 x 597 1 @ 191 x 597

2 @ 260 x 597

Drawer 700 720 x 700 x 561 1 @ 191 x 697

2 @ 260 x 697

Drawer 800 720 x 800 x 561 1 @ 191 x 797

2 @ 260 x 797

Drawer 900 720 x 900 x 561 1 @ 191 x 897

2 @ 260 x 897

Important Information

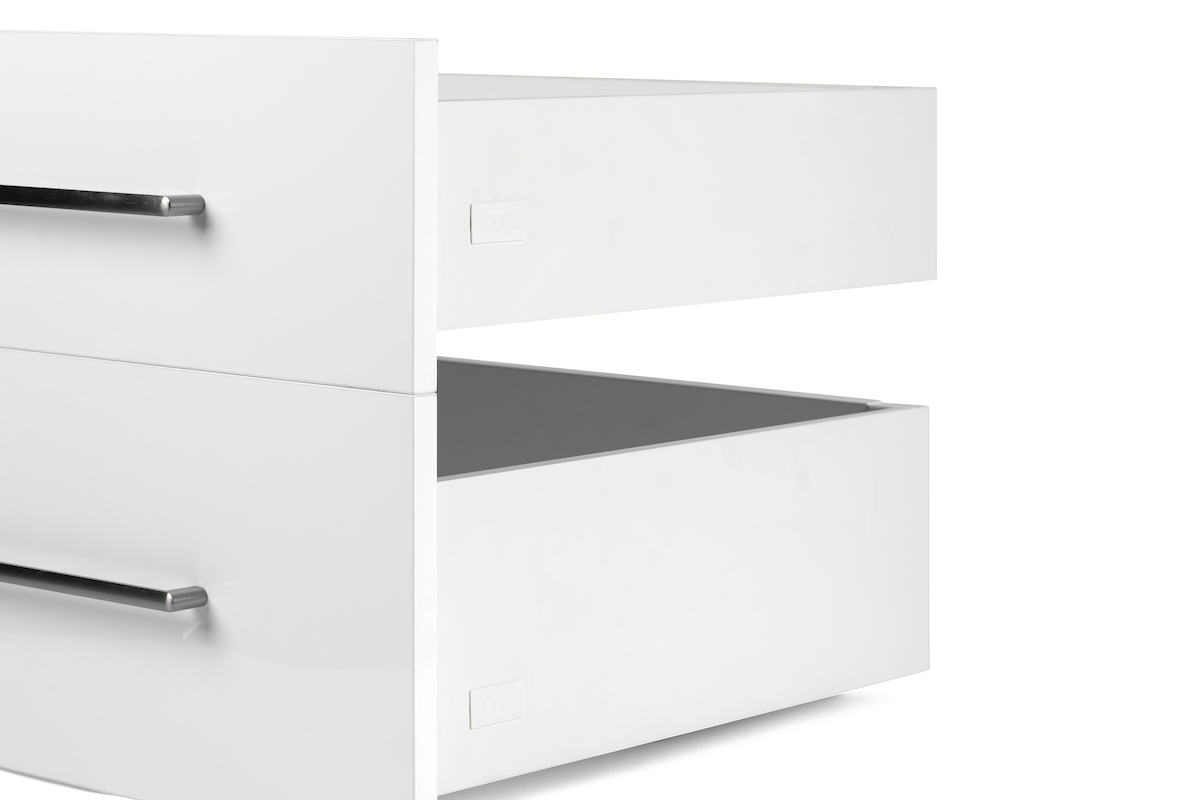

Our standard drawers use a single wall metal runner that is fully adjustable. We also carry a Soft Close option. The base and back are made from 16mm white melamine.

Standard Drawer Runner Sets:

4 Drawer              4 @ 118mm high

3 Drawer             1 @ 118mm high and 2 @ 150mm high

Soft close Drawer Runner Sets:

4 Drawer             4 @ 127mm high

3 Drawer             1 @ 127mm high and 2 @ 178mm high
