Base Units

All flat pack units are Australian made and are available for pick up or delivery from any of our locations.

Description

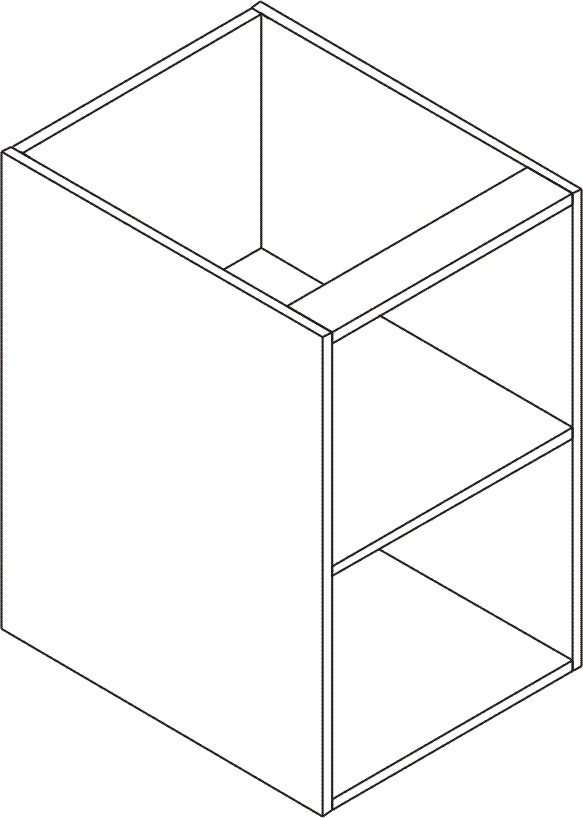

Base units are designed to sit 150mm off the floor and sit under your benchtop.

Base units are 720mm in height and are made to a depth of 561mm which accommodates a 600mm wide bench top perfectly.

Our base units come in varying widths and can accommodate 1 or 2 door preferences.

They have adjustable shelf hole drilling (system 32) so that shelves can be adjusted to required height

Features
  • Easy installation
  • Customised door options
Sizing
Type Size 1 Door 2 Door Drilling
Base 250 720 x 250 x 561 717 x 247 87/87
Base 300 720 x 300 x 561 717 x 297 87/87
Base 350 720 x 350 x 561 717 x 347 87/87
Base 400 720 x 400 x 561 717 x 397 87/87
Base 450 720 x 450 x 561 717 x 447 87/87
Base 500 720 x 500 x 561 717 x 497 87/87
Base 550 720 x 550 x 561 717 x 547 87/87
Base 600 720 x 600 x 561 717 x 597  2 @ 717 x 297 87/87
Base 650 720 x 650 x 561  2 @ 717 x 322 87/87
Base 700 720 x 700 x 561  2 @ 717 x 347 87/87
Base 750 720 x 750 x 561  2 @ 717 x 372 87/87
Base 800 720 x 800 x 561  2 @ 717 x 397 87/87
Base 850 720 x 850 x 561  2 @ 717 x 422 87/87
Base 900 720 x 900 x 561  2 @ 717 x 447 87/87
Base 1000 720 x 1000 x 561  2 @ 717 x 497 87/87
Important Information
  • Doors not included with unit

For your convenience we can drill hinge holes in your custom-made doors. You will need to specify if you would prefer screw on hinges (we drill a single 35mm hole) or clip-on hinges (we drill a 35mm hole plus 2 smaller holes, grass pattern only).
